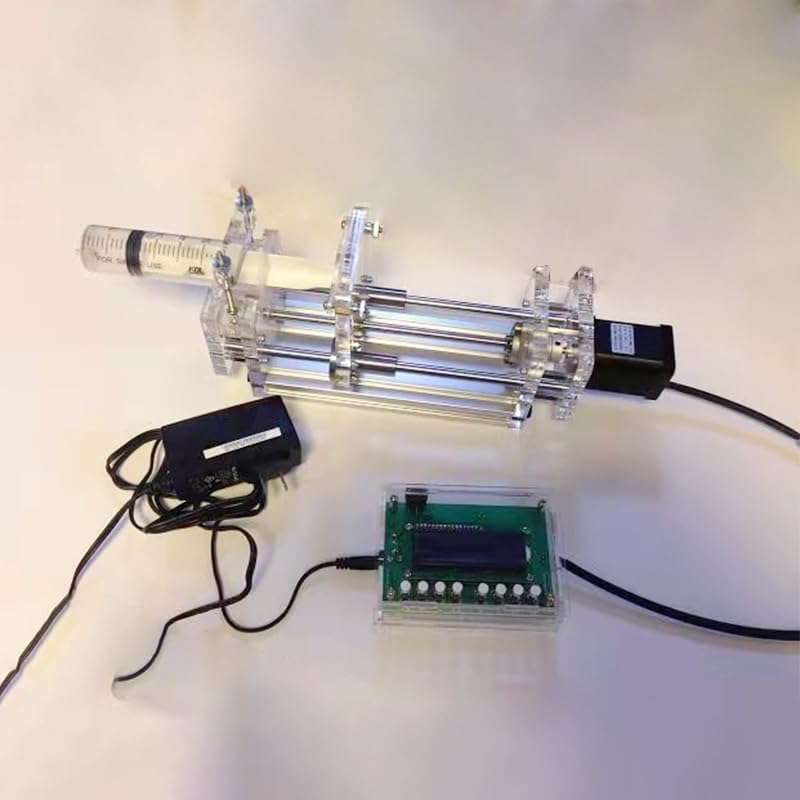

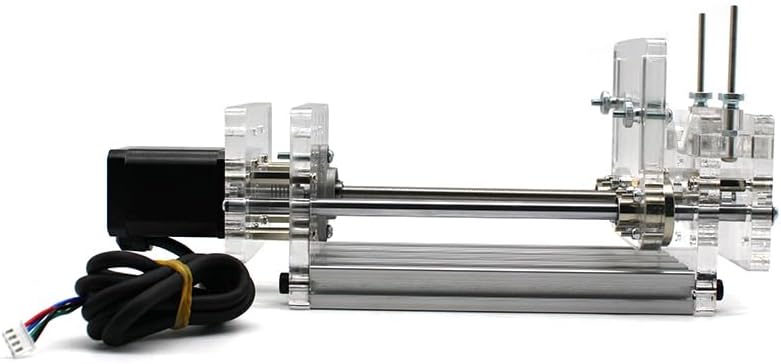

Desktop Injection Pump Syringe Propeller Laboratory Micro Pump Glue Dispenser 1ml~150ml 110V-220V(with Control)

Type : Power Tool Parts Origin : Mainland China Desktop Injection Pump Syringe propeller Laboratory Micro Pump Glue dispenser 1ml~150ml 110V-220V Description: 8mm diameter stainless steel round guide rail, extended flanged bearing, screw rod with T8 lead 1mm screw, copper screw nut The clamping is fixed by a clamp, and the M4 hand-tightening nut is fastened; The motor is a 42-step motor with a large torque motor and a single-turn setting of 400 steps. Piston mounts are adjustable up and down for use with syringes of different sizes The controller uses 1602 liquid crystal display, 4 buttons can set speed, working time, working mode, and the other 4 buttons are used to control the machine, respectively, fixed speed and high speed The TTL level RS-232 interface is reserved on the board, and the control button also has an external interface, which can be used for connecting an external switch, a foot switch, etc. Parameter: Clampable syringe: 1ml ~ 150ml (less than 42mm in diameter) Time setting: 1 second to 17 hours; Working mode: manual control, timed work, communication control Equipment working power: 12V2A Adapter power supply: 100 ~ 240V / 50Hz Slider stroke: 140mm Single circle lead: 1mm Size: 290mm*130mm*130mm Weight: 1.5kg

• External Interface:Equipped with an external interface for connecting foot switches or other control devices.
• Multiple Control Modes:Offers manual, timed, and communication control modes for diverse operational needs.
• High Torque Motor:Features a 42-step motor with a large torque for reliable and efficient dispensing.
• Ve44 Injection Pump|Bulk Syringes|Adjustable Piston Mount:Accommodates syringes from 1ml to 150ml with adjustable piston mounts for versatile use.
• Extensive Time Setting:Offers precise control with time settings from 1 second to 17 hours for various applications.
